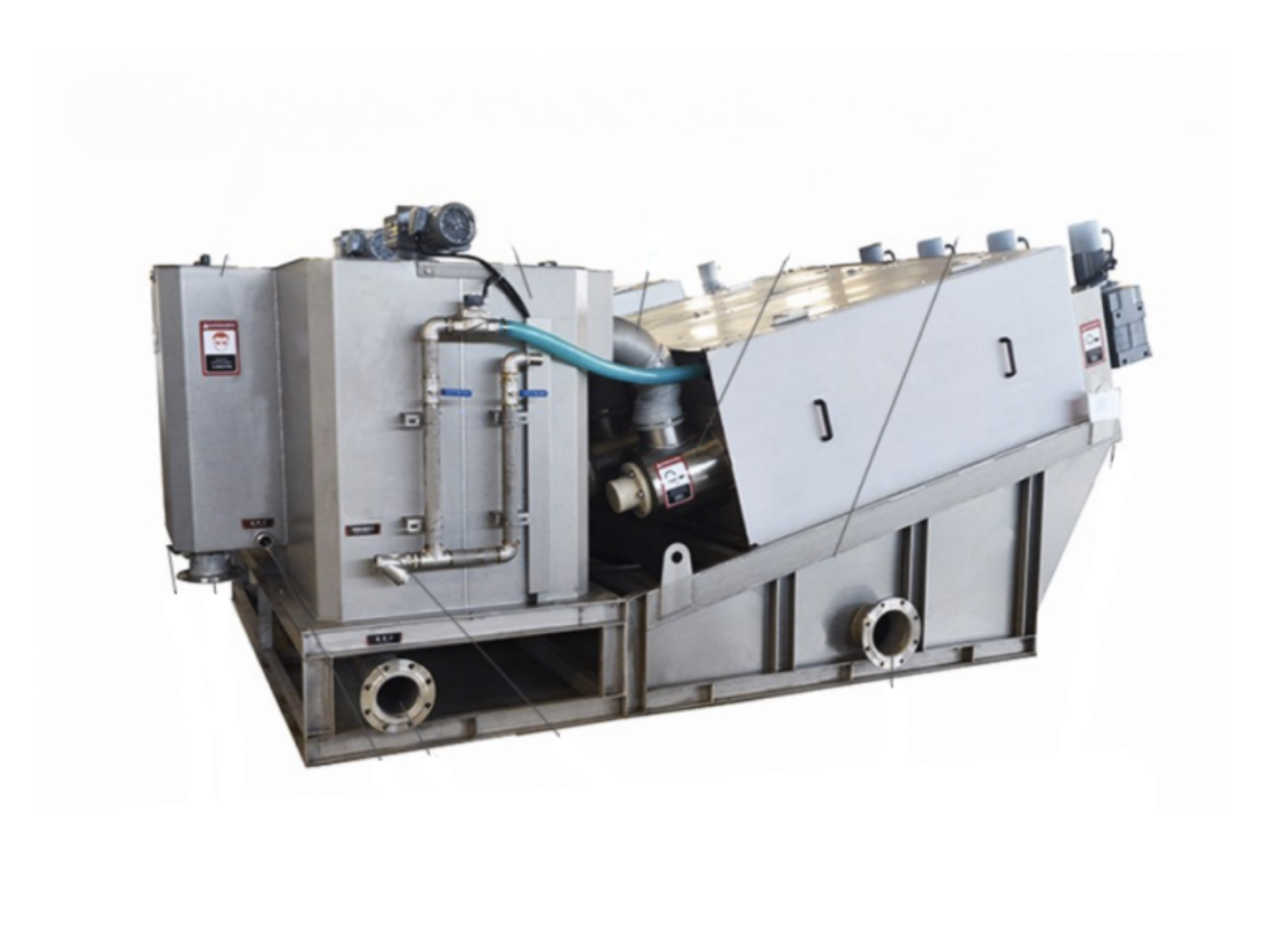

The screw press sludge dewatering machine is clog-free and eliminates the need for sedimentation and sludge thickening tanks, saving construction costs. The system utilizes the screw and the moving rings to clean itself as a clog-free system and is controlled by a PLC. it’s a technology that can replace the traditional filter press such as a belt press and frame press. The screw speed is very low, so has low power consumption as well as water consumption in contrast to a centrifuge. The system utilizes polymers with automatic dosing control.
EQUIPMENT REQUIRED
The Sludge Dewatering Screw Press can be provided with all equipment required for dewatering included and factory mounted, piped, and wired on a single stainless steel skid. This equipment includes the sludge pump, wash water pump, polymer dosing system and control panel. The system features fully automated one pushbutton startup and shutdown. Once started up the system can run unattended and can be set to shutdown automatically with no operator intervention.
The Sludge Dewatering Screw Press offers a completely operational, skid mounted and self-contained system which can include:
- Screw Press
- PLC Controls
- Sludge Pumps
Dewatering Screw Press Benefits & Features
- Enclosed to minimize odors and noise
- Very low wash water usage(1/8 compared with belt press)
- Very low power consumption(1/20 compared with a centrifuge)
- High cake solids
- Minimal operator requirement
- Easy to operate and maintain
- Auto start-up, run, and shutdown
- Touch screen operation optional
- Sludge Flow and Cake Monitoring System
- Available with many other options like Dairy, Palm Oil, etc.
